FPG257 MAG LiNE FLAP BARRIER
| Previous | 4 / 18 | Next |
LiNE Series by MAG
Download Files
MAG_FPG257_Flap-Barrier_Specification_V1.4.pdf (1.35 MB)MAG_LiNe_Pedestrian-Gate_Brochure.pdf (1.96 MB)
MAG FPG257
LiNE FLAP BARRIER
– Brushless motor drive– Lane clearance: 550mm
– Fastest 0.65s opening speed
– MTBF > 5 mil cycle
– Control board with LCD screen
FPG257 LiNE flap barrier is a type of pedestrian gate typically installed at the
entrance of the building with an access control reader to restrict unauthorized access
while maintaining a welcoming atmosphere. FPG257 requires
the least maintenance among the pedestrian gates.
LiNE FPG257 is designed to achieve the right balance of cost-effectiveness and consistent quality.
With its streamlined design, LiNE FPG257 simply add value to any building entrance
by tightening pedestrian security without looking out of place.
Optimized for best value
We optimized to only include the most essential feature while maintaining durability for LiNE.
This made LiNE FPG257 a minimalist flap barrier with durability,
all without the expensive price of European brand.

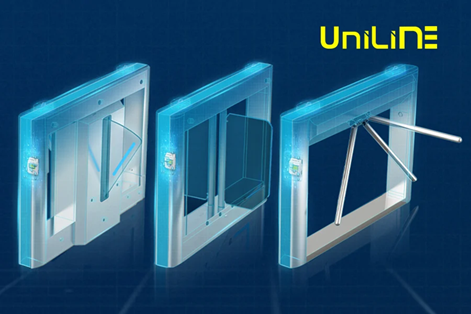

UniLiNE concept standardized the design of all types of gate and leverage bigger economy
of scale to make LiNE series more affordable.
| Features | Swing Barrier FPG257 |
| Consecutive Access Memory | ✓ |
| Bi-directional Access | ✓ |
| Time-out Auto-close | ✓ |
| LED Indicator | ✓ |
| Safety Sensor Auto-reverse | ✓ |
| Buzzer Alarm | ✓ |
| Emergency Auto-open | ✓ |

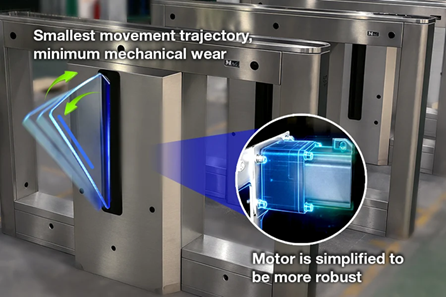

Efficient
FPG257 uses a DC Brushless motor which requires virtually ZERO maintenance.
The movement trajacteory is designed to be smallest to ensure efficient pass-thru,
while minimizing the mechanical wear, thereby lowering the long-term cost of ownership.

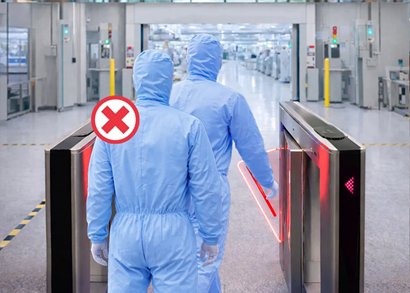

Safety and security when it matters
The flap panels will auto reverse to avoid pinching user.
Flap panels will turn red with an alarm buzzer to alert unauthorized user,
tailgating or incorrect access direction attempt so that the security guard can react immediately on the spot.

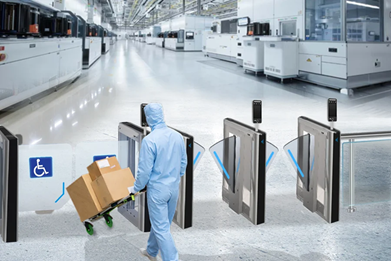

Wider access for special needs
you no longer need to mix and match different product at the same entrance.
Our swing barrier, with the same UniLINE housing can provide 900mm wide passage
width and fit in seamlessly next to multiple lane of LINE flap barrier.
Easier to accommodate project schedule
Unforeseen delay is common in most projects. You are worried about the extra
storage/penalty cost if the gate arrives too early or too late.
Let us know your project date forecast so that we can plan the production to meet your dateline.

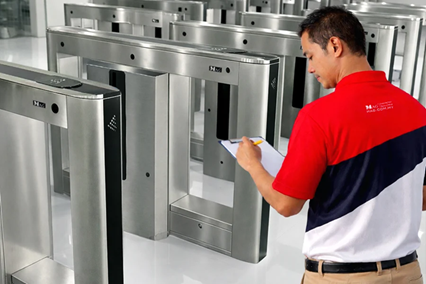

All gate is 100% QC tested as per our ISO9001 procedure just before your collection.
Specification:
| Description | Parameters |
| Body Material | Stainless Steel SUS304 |
| Passage Width | 550mm |
| Door Opening / Closing speed | Programmable, >0.6s. |
| Optimal Flow Rate | Up to 35 person per minute |
| Power Supply | AC220/110V±10%, 50/60Hz |
| Power Consumption | <150W (Operational) |
| Motor | DC Brushless Motor, 24V |
| Input Connection | Dry contact pulse |
| Working Environment | Indoor and sheltered outdoor |
| Working Temperature | -20°C - 70°C |
| Relative Humidity | ≤ 90%, non-condensing |
| Door Material | Acrylic |
| IP Rating | IP 4X |
| MTBF | >5 million cycles |
