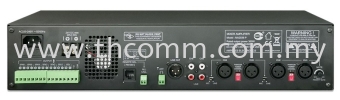

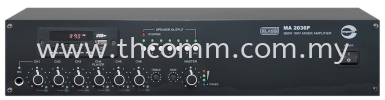

AMPERES MA2000 Series
| Previous | 1 / 27 | Next |
MA2000 Series
Mixing Amplifiers Class D
MA2006 / 2006P : 60W 100V Line
MA2012 / 2012P : 120W 100V Line
MA2024 / 2024P : 240W 100V Line
MA2036 / 2036P : 360W 100V Line
The new MA2000 Series of mixing amplifiers has been fully enhanced
with added features and most notably, they are using Class D amplifiers.
This has improved its power efficiency and frequency response,
delivering better sound quality. In addition, they are now more compact
and lighter as compared to its predecessor.
Two versions are available : MA2000 and MA2000P,of which the latter has
built in media player of USB MP3, SD Card, Bluetooth and FM tuner.
Both have 6 zone output selector which can connect directly to
PM1060 paging microphone for zone paging.
They are most suitable for small setup such as in meeting / function rooms,
boutiques, retail outlets, showrooms, prayer hall etc.
Features : -
High efficiency Class D amplifiers
6 mic / line inputs with priority muting
Phantom power available
6 zone output with remote trigger
Easy connection to PM1060
100V and 4 Ohm outputs
Compact in size and lightweight
Bass and treble controls
Optional media player (MA2000P)
AC and DC back up for uninterrupted operations
Technical Specification : -
Application Example
The sample application below shows a typical solution for
a boutiques, restaurants or small supermarket
Technical Specification : -
Operating voltage Power cons. (240V AC)
Rated outputs (100V) As per variants above
Rated outputs (100V) As per variants above
Power cons. (240V AC) MA2006 : 115W (0.5A)
MA2012 : 160W (1.7A)
MA2024 : 285W (1.2A)
MA2036 : 450W (1.9A)
MA2012 : 160W (1.7A)
MA2024 : 285W (1.2A)
MA2036 : 450W (1.9A)
Inputs (Ch1 & 2) Mic balanced
(Ch3 & 4) Mic / Line balanced
(Ch5 & 6) line unbalanced (RCA)
Phantom power line unbalanced (RCA)
Outputs 100V and 4 Ohm
Zone controls 6 zones (only 100V output)
Frequency response 120 - 20 kHz
S/N ratio >68 dB
Thermal, short circuit,
overload, AC and DC fuse
Dimensions (WxHxD) 434 x 88 x 200 mm
Weight 4.35 - 4.4 kg
Application Example
The sample application below shows a typical solution for
a boutiques, restaurants or small supermarket
