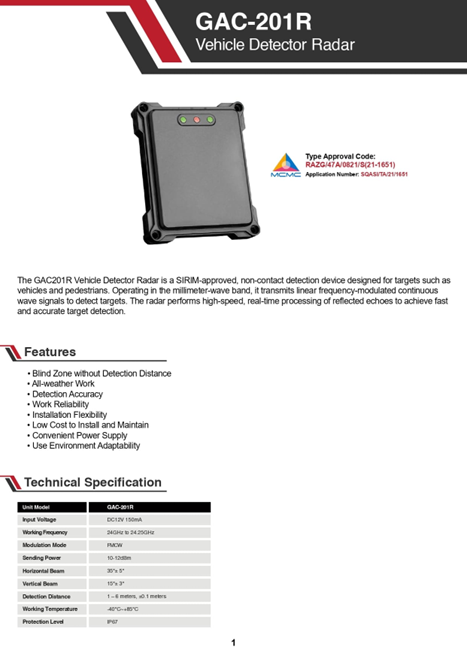

Radar Vehicle Detector

GAC-201R

Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians.

Features :

• Use Environment Adaptability

Center Frequency : 24 GHz                               Vertical Beam Width : 43°

Horizontal Beam Width : 11°                              Coverage Range  : 0 m to 6 m

Distance Adj. Range : 2.0 m to 6 m (8 levels)    Response Time  : 100ms

Inspection Miss Rate : 0.1%                               Detection Miss Rate : 0.1%

False Detection Rate : 0.05%                             Dimensions : 105 mm×78 mm×26 mm

Weight :  85g                                                       Waterproof : IP65

Supply Voltage Range : DC   6V to 8V               Supply Current : less than 90 mA/12V

Operating temperature : -40℃ to +85℃             Humidity  : relative humidity 99% at 25℃.
