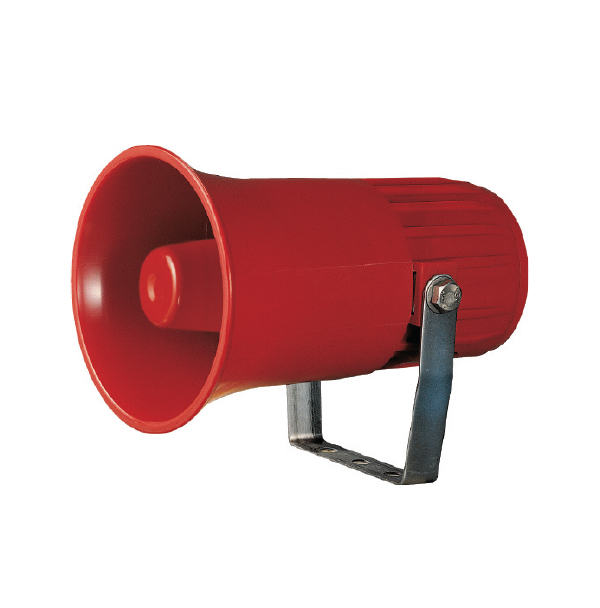

SRN-WM QLight

SRN-WM QLight SIREN  Sound System SRN-WM QLight SIREN  Sound System SRN-WM QLight SIREN  Sound System
RM 0.00
In Stock


Download Files

SRN_manual.pdf (825.04 KB)
SRN_drawingpdf.pdf (60.24 KB)
SRN_catalog.pdf (1.09 MB)

QLight

General Electronic Sounders  :  SRN



SRN - WM 5 Warning Sounds

General Electric Horn
Max.108dB

Industrial Alarm sounder and Electrical Hooter. Electric sounder with excellent alarm recognition

https://www.qlight.com/en/products/?qpcateid=35&prodidx=568&prodcode=QMPS


  • Cost effective model with high signal sound
  • A variety of sound selections between warning sounds, alarm sounds, melodies and voice messages to fit your sophisticated application needs
  • User defined voice signal type(WV) shall be provided upon request
  • Can adjust sound volume with the switch built inside the unit
  • Materials : Housing-ABS(Standard Color : Red)
  • Ambient operating temperature : -25°C to +50°C
  • Protection rating : IP55
  • Certificates : CE Compliant

Product Specifications

Model number Built-in Sound Volume Voltage Current Certificates Weight
SRN WS 5 Warnings 108dB DC12V-DC24V
AC110V
AC220V
Max.0.320A
0.075A
0.035A
DC- 0.72kg

AC- 0.98kg
WM 5 Melodies 108dB
WA 5 Alarms 105dB
WV 5 Voices 98dB

Sound Tone Combination of Standard Product


Sound Category Sound Tone Channel Sound Volume
WS 5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
Ch1
Ch2
Ch3
Ch4
Ch5





Max. 108dB
WM 5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
Ch1
Ch2
Ch3
Ch4
Ch5





Max. 108dB
WA 5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
Ch1
Ch2
Ch3
Ch4
Ch5





Max. 105dB
WV 5 Customizable voices

Ch1
Ch2
Ch3
Ch4
Ch5
  Max. 98dB
